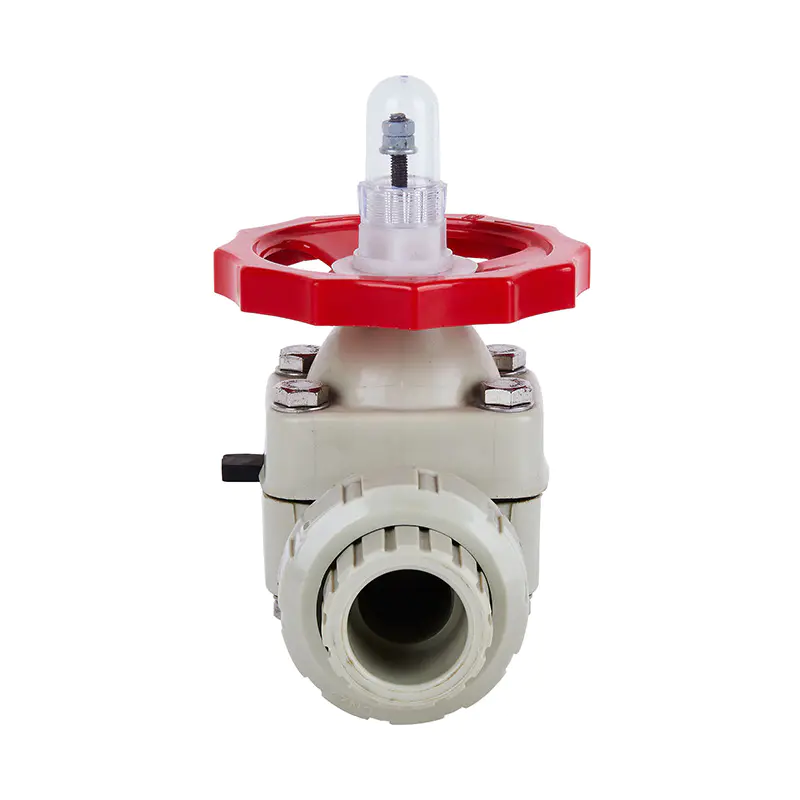

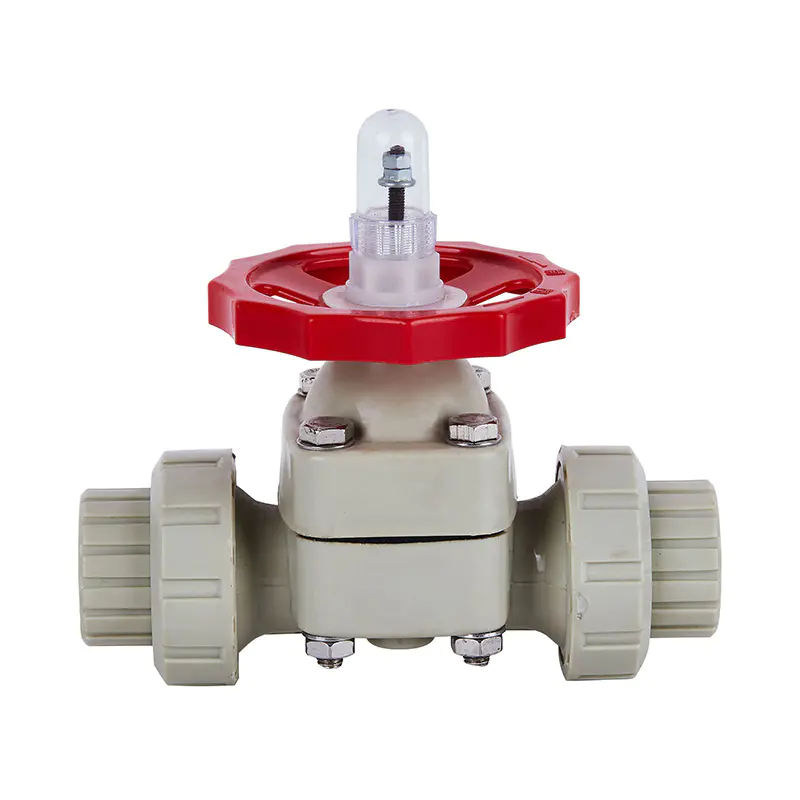

High-performance, high-quality PPH plastic double diaphragm valve for water supply and chemical applications.
Applications: General, water supply, chemical industry.
Connection: Union.
Temperature of Media: Room temperature.
Power: Manual.
Media: Water, chemical liquids.
Port size: 32mm.
Dimensions: 1″
Temperature range: -20°C to +110°C.
Connection method: Combined diaphragm valve.
Material: PVC-U, PVC-C, FRPP, PPH, PVDF.
Certification: ISO9001:2008 CE.
Standards: DIN, ANSI, ASTM, JIS, BS, CNS.
Pressure Class: 1.0Mpa（10bar）
产品描述
1. The seal diaphragm is made of F46 or PFA, the number of folds is ≥120000 times, and the corrosion resistance is equivalent to F4.
2. Adopting the screw lifting structure, the opening and closing force is huge and the stability is good.
| Material | Medium temperature℃ | Material | Medium temperature℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| PVC-C | -20℃~+95℃ | PVC-U | -5℃~+45℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| FRPP | -20℃~+120℃ | PPH | -20℃~+110℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| PVDF | 40℃~+150℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||||
